Model: MC8005 Diamond Grade Reflective Film (Type V)
This Diamond Grade Type V Reflective Film meets the performance standards of GB/T 18833-2012 and is designed for long-term outdoor use in critical applications such as national expressways.

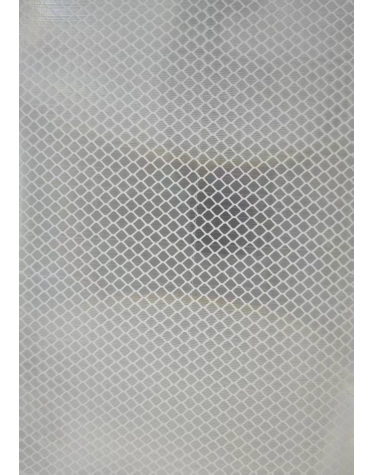

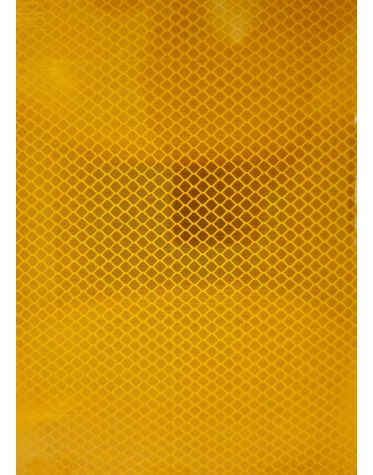

Produced using full-cube prismatic technology, it offers outstanding brightness, uniformity, and wide-angle visibility. The film is manufactured with high-performance materials including PMMA, PC, and PVDF, combined with a fluoropolymer top layer for over 20 years of weather resistance and a durable, eco-friendly adhesive with a 10+ year service life.
It resists fading, peeling, mildew, and cracking, maintaining excellent retroreflectivity and appearance even under harsh conditions.
Technical Specifications
| Item | Diamond Large-Angle Reflective sheeting | |||||
| Angle/Minimum RA Value | White | Yellow | Red | Green | Blue | Fluorescent Yellow-Green |
| Observation Angle0.2° Entrance Angle-4° |
580 | 435 | 87 | 58 | 26 | 460 |
| Observation Angle0.2° Entrance Angle15° |
348 | 261 | 52 | 35 | 16 | 276 |
| Observation Angle0.2° Entrance Angle30° |
220 | 165 | 33 | 22 | 10 | 180 |
| Observation Angle0.5° Entrance Angle-4° |
420 | 315 | 63 | 42 | 19 | 340 |
| Observation Angle0.5° Entrance Angle15° |
252 | 189 | 38 | 25 | 11 | 204 |
| Observation Angle0.5° Entrance Angle30° |
150 | 110 | 23 | 15 | 7 | 120 |
| Observation Angle1° Entrance Angle-4° |
120 | 90 | 18 | 12 | 5 | 96 |
| Observation Angle1° Entrance Angle15° |
72 | 54 | 11 | 7.2 | 3 | 58 |
| Observation Angle1° Entrance Angle30° |
45 | 34 | 7 | 5 | 2 | 36 |
| Service Time | Outdoor Weather Resistance 10years | |||||
| Operating Temperature | 18~28℃ | |||||
| Thickness | 0.48mm | |||||
| Application Scope | School Zones,Ports,Mining Areas,Industrial Areas,Permanent Traffic Signs ,Traffic Facilities Contour Markers Vehicle Reflective Markings | |||||
| Processing Technique | Digital Printing, Plotter Cutting,Screen Printing | |||||
| Substrate Material | Aluminum plates, Steel Sheets, Glass, Acrylic Boards, Ceramic Tiles other smooth hard surfaces Etc. |
|||||
Product Performance
High Retroreflectivity
Utilizes advanced reflective technology to ensure excellent retroreflection and wide-angle visibility, even from low or off-center viewing angles.
Weather-Resistant & Durable
Features a waterproof top layer and heat-resistant adhesive. Bright colors, UV-resistant, and compliant with Class V international standards, offering long-term outdoor durability in harsh environments.
Strong Adhesion
Uses high-performance imported adhesive for strong bonding to various surfaces. Resistant to warping and peeling over time.

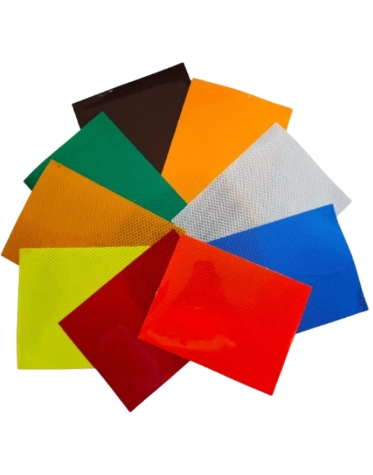

Multiple Colors Available
Available in a range of vibrant colors with high reflectivity and saturation to meet diverse application needs.

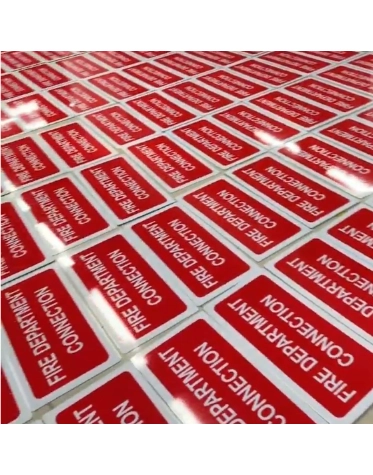

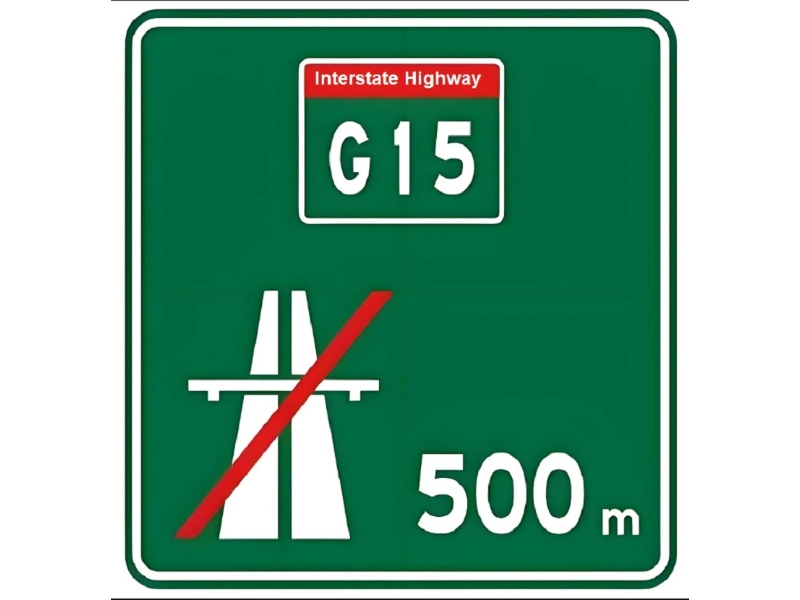

Large-Angle Diamond Reflective sheeting Actual Usage
